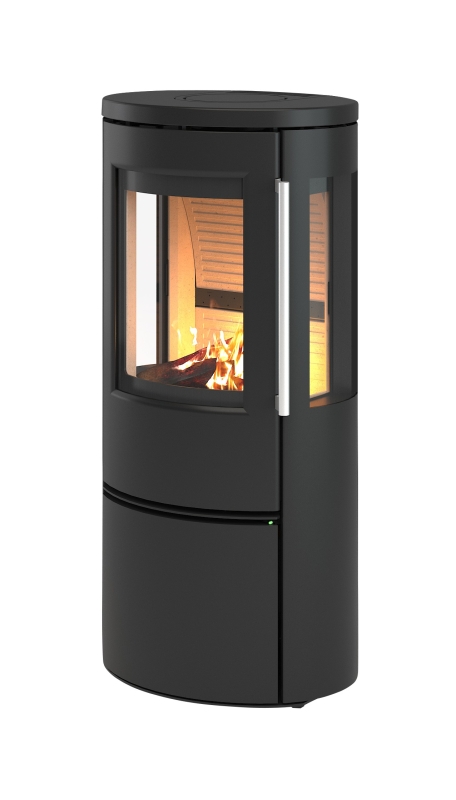

Termatech TT23RG A-Flame
Electronic automatic air control – greater comfort.
Automated Electronic Air Control (A-FLAME): Automatically regulates airflow into the combustion chamber to optimize fuel usage, increase heating efficiency (up to 82%), and reduce emissions—without requiring Wi-Fi, apps, or software updates.
3-Sided Panoramic View: Features a large curved front glass panel along with two side glass panels, allowing you to enjoy the fire from multiple angles throughout the room.
Durable Cast Iron Construction: Essential components—including the door, top plate, and combustion chamber base—are crafted from cast iron for long-term stability and durability.
Magnetic Closing System: Uses heat-resistant magnets for a smooth, reliable, and tight seal on the cast iron door.
Direct Air Connection: Compatible with external direct air supplies (ideal for modern, low-energy, or well-sealed homes) and supports both top and rear flue connections.
| Nominal Effect (kW) | 5.6 |
| Operating Range (kW) | 3 – 7 |
| Efficiency (%) | 82 |
| Heats (m²) | 30 – 120 |
| Weight (kg) | 127 |
| Fresh Air Connection Possible | Yes |
| Convection Stove | Yes |
| Airwash | Yes |
| Ash Drawer | Yes |
| Control Handle | Yes |
| Connection at the Top or Rear | Yes |
| Colours | Black |
| Height x Width x Depth (mm) | 1073 x 521 x 421 |
| Flue Pipe Connection Diameter (mm) | 150 |
| Combustion Chamber Width/Depth (mm) | 340 / 271 |
We only sell Termatech appliances to organisations who have showrooms. If our records indicate that you do not have a showroom, our sales office will be in contact to discuss how to proceed.
| Item code: | 69TT23RGA |
|---|
