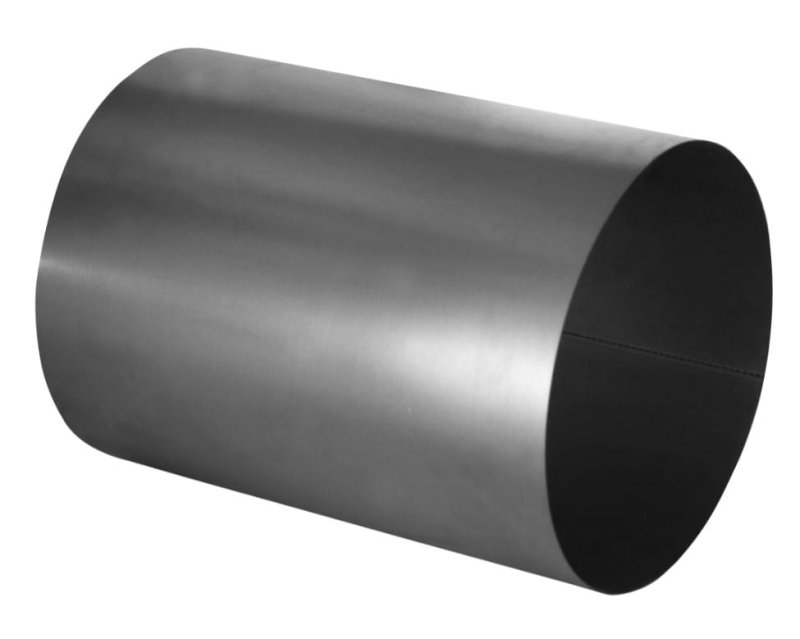

150mm Core 90 Degree Combustible Wall Sleeve

The 90° Wall Sleeve is used when a chimney passes through a timber-framed or combustible wall. This specialized component acts as a protective conduit, maintaining the necessary safety clearances and preventing heat transfer to the internal structure of your wall.

Fuel type: Wood, solid fuel, gas and oil
Outer skin: 304 stainless steel 0.5mm thick - painted
Inner skin: High grade 316 stainless steel 0.4mm thick
Insulation: High density rockwool
Distance to Combustibles: 60mm or 50mm when using 10mm non-combustible boarding

Designed for the Trade, Refined for the Installer.
• Push-Fit Simplicity: Just push and secure.
• Ready to Go: Locking bands are pre-fitted to the pipe—fit it faster, finish it sooner.
• Trade Focused: Lightweight and easy to handle on site.
• Flat Black Finish: A seamless match for both contemporary and traditional freestanding stoves.
• 10 year warranty: Reassurance with every install.

T450 N1 W V2 L50050 G60
T450 N1 D V3 L50050 G60

T450 N1 W V2 L50050 G50
T450 N1 D V3 L50050 G50
