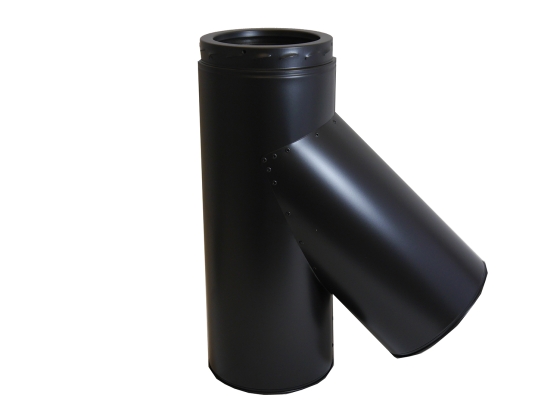

200mm Internal Diameter Nova 135 Degree Tee - Matt Black

135° equal tee. not suitable for condensing systems - spigot top socket branch and bottom connections. Use at the base of a vertical chimney or to allow a smooth transition from the horizontal to the vertical plain in conjunction with a 45° elbow. Coupler on branch is unbarbed to allow unlimited rotational adjustment. Adjustable screw toggle locking band included. 495mm high. Matt black finish.

Prefabricated twin wall insulated stainless steel chimney system, manufactured from a high grade 316L stainless steel liner and a 304 outer case. Nova's fully-welded construction, combined with 25mm of high performance/high density mineral wool, provides the optimum level of performance required for today's modern high efficiency combustion equipment, as well as being suitable for the more traditional oil, gas and solid fuel fired appliances. The construction provides a high thermal resistance, which ensures rapid stabilisation of the flue gas temperature and draught, whilst maintaining a relatively low temperature on the external surface of the chimney.

Nova is suitable for negative pressure internal and external applications. When used with a seal and where the flue gas temperature does not exceed 200°C, Nova is suitable for wet and positive pressure applications up to 200Pa.

Multi barb quick lock jointing system together with a locking band provides a secure joint. Locking bands are included with components with the exception of starting Adaptors.

Tested to BS EN 1856-1.

Manufactured in the UK.

T600 N1 D V2 L50050 G(50).

T450 N1 D V2 L50050 G(50).

T200 P1W V2 L50050 O(50) - with seals.

Item code: 1108044MB
