Rytons 80mm Direct Fresh Air Connection Kit - Terracotta

Rytons 80mm Direct Fresh Air Connection Kit - Terracotta

• Direct ventilation kit for stoves with 80mm diameter outlets.
• Ducting attaches to the back of the stove via the manufacturer’s outlet allowing combustion air direct from the outside.
• Does not introduce light and draughts into the room.
• Aluminium duct is made from a non-combustible material to DIN 4102 Class A1 and is suitable for temperatures up to 250°C.
• External grille U.V. stabilised to slow down the effects of sunlight.

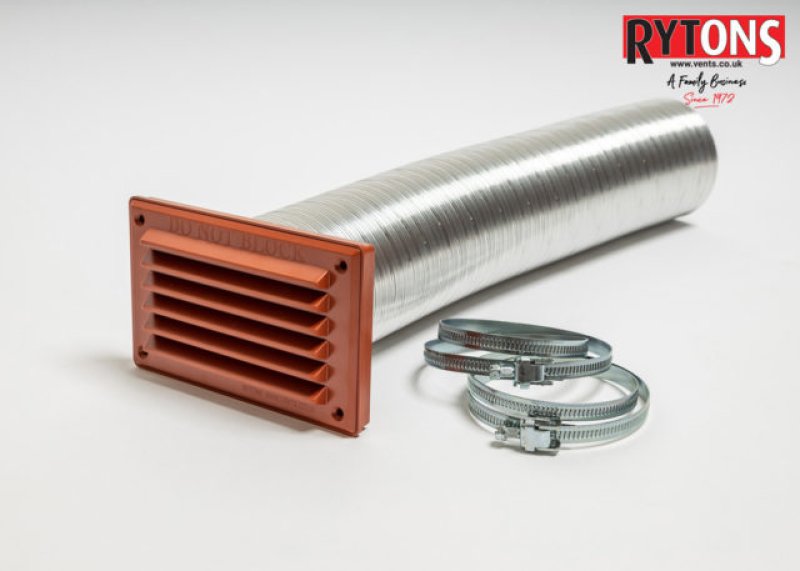

Kit contains
• x1 Rytons 6×6 Louvre Ventilator (LV103).
• x1 Rytons 6×6 Louvre Backplate with 97mm Dia. Spigot (LV4BACKWH).
• x1 Rytons Semi Rigid Aluminium RytHose (FSRA41.5M).
• x2 Jubilee Clips.

Size
• Louvre grille: 166mm L x 160mm H.
• Ducting: 102mm Dia. x 1.5m L.
