ICID Plus


ICID Plus is a multi-application twin wall system adaptable for Dry (D), Fu (W) and Positive Pressure (P) applications. It is manufactured in the UK by Schiedel.

Suitable for

  • Gas, Oil, Wood and Multi-Fuel
  • Traditional stoves
  • Pellet stoves
  • Biomass appliances
  • Mini/ micro CHP
  • Condensing boilers capable of withstanding positive pressure

Features

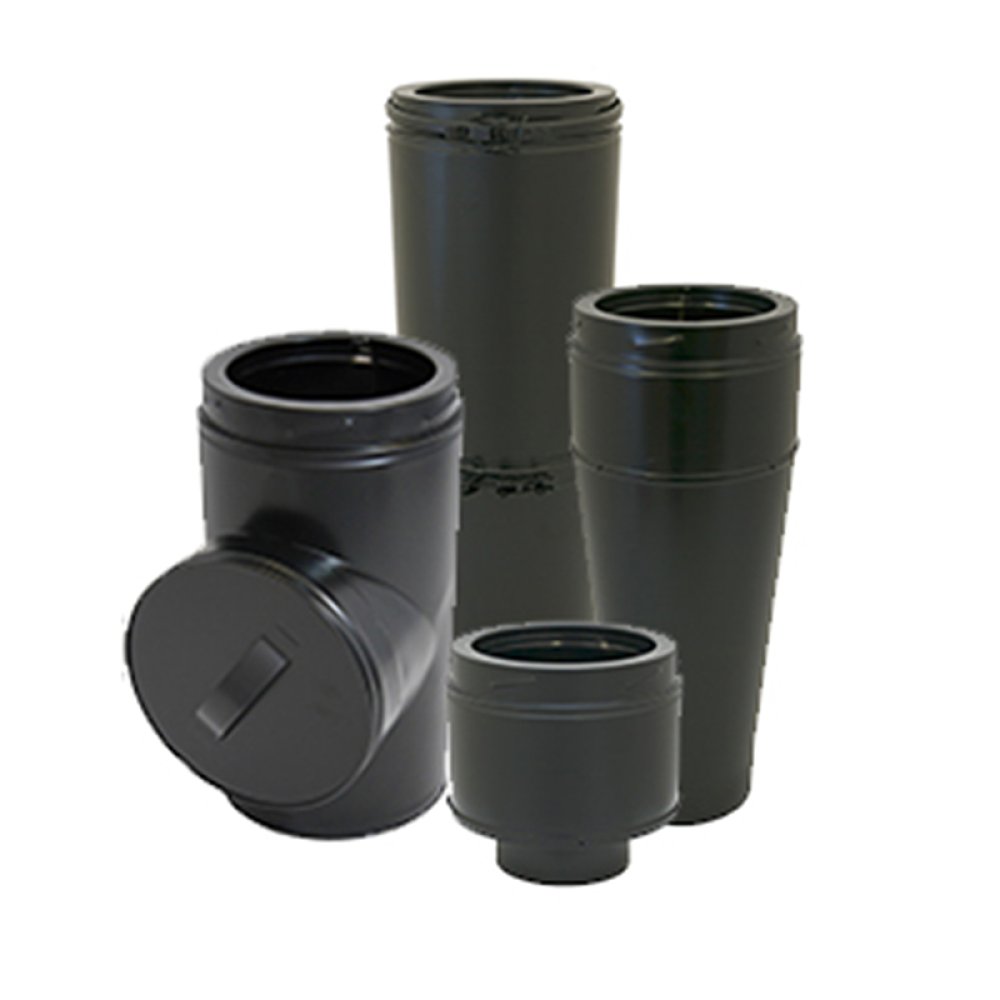

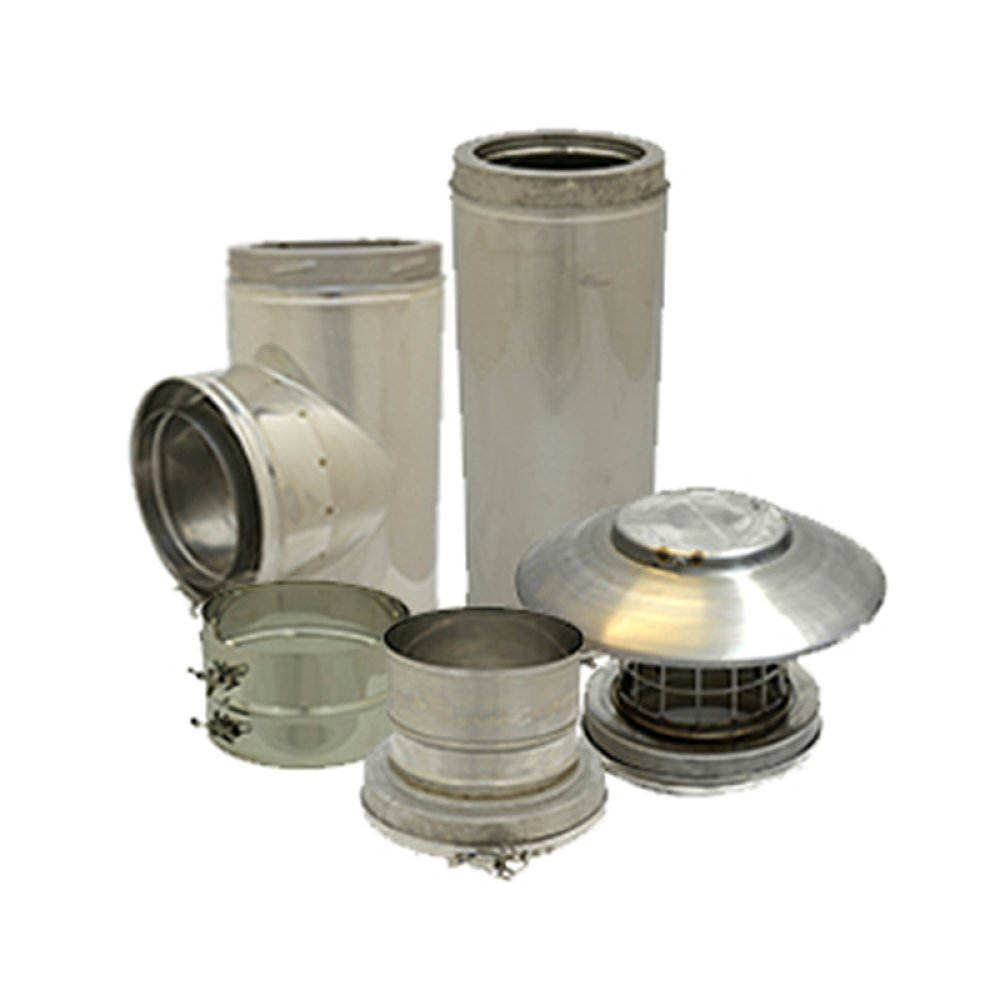

  • Available in internal diameters of 100, 125, 150, 180 and 200mm (Stainless Steel outer case) or 125 and 150mm (Matt Black outer case).
  • Twist lock bayonet jointing system, secured by locking band.
  • Advanced corrosion resistant design and construction uses laser welded 316L stainless steel inner liner and stainless steel case.
  • 25mm of high density mineral wool insulation that maintains flue gas temperature, maximising efficiency, improving flue draught on start-up and minimising condensation.
  • Low external case temperature.
  • The inner liner is free to expand through the female collar, allowing for maximum thermal expansion even during a soot fire.
  • The inner liner has an engineered design with an inward beat at the female end which acts as a capillary break preventing moisture being drawn through the joint.
  • Lip seal packs are available containing a quick fit female lip seal with a grease sachet to allow product to be easily adapted for use in Positive Pressure (P) applications.
  • Lifetime Guarantee (see downloads for more information).

Technical Data

Short Firing Temperature 550°C / With Lip Seal: 250°C
Thermal Shock 1000°C
Mode of Operation Zero and Negative Pressure / With Lip Seal: Positive Pressure
Pressure Capabilities 40Pa / With Lip Seal: 200Pa
Outer Case Stainless Steel (Option: painted matt black)
Outer Case Thickness 0.5mm
Outer Case Seam Laser or inert gas welded
Liner 316L: 1.4404 : X2CrNiMo 17-12-2
Liner Thickness 0.5mm
Liner Seam Laser or inert gas welded
Insulation High performance mineral fibre
Insulation Thickness 25mm
Distance to Combustibles 60 – Zero mm (see Approvals)
Average Thermal Resistance (200°C) 0.4m2 kW

Dimensions

Internal diameter (mm) 100 125 150 180 200
External diameter (mm) 150 180 200 235 256

Approvals

  • Manufactured under a Quality Management Scheme approved to BS EN ISO 9001
  • Certified for corrosion resistance on gas, oil and solid fuel by Gastec, MPA and TÜV
  • 4 hour fire rating to BS476 Part 20
  • HETAS listed for use on solid fuel applications

ICID Plus is CE Certified to EN1856-1 TÜV 0036 CPR 9195 010 with designations:
ICID Plus is CE Certified to EN1856-2 TÜV 0036 CPR 9195 042 with designations:

System Chimney EN1856-1
T4500 N1 W V2 L50050 G60
T450 N1 DV3 L50050 G60
60mm distance to combustibles in a combustible shaft
T450 N1 WV2 L50050 G50
T450 N1 DV3 L50050 G50
50mm distance to combustibles in a non combustible shaft or free air
T200 P1 W V2 L50050 O00
Zero distance to combustibles
Connecting flue pipe EN18546-2
T450 N1 D V2 L50050 G100 M
